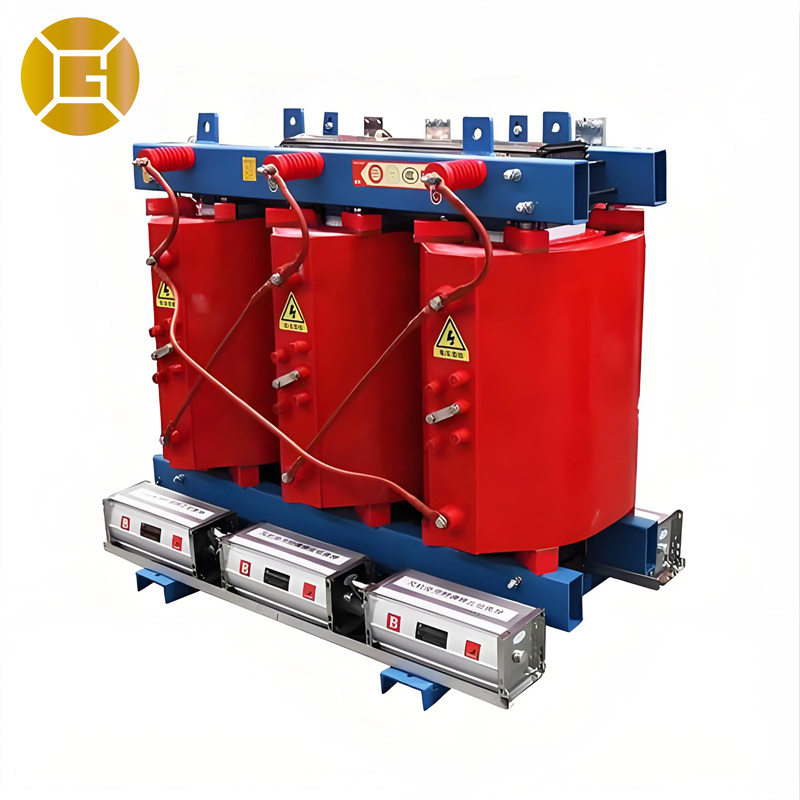

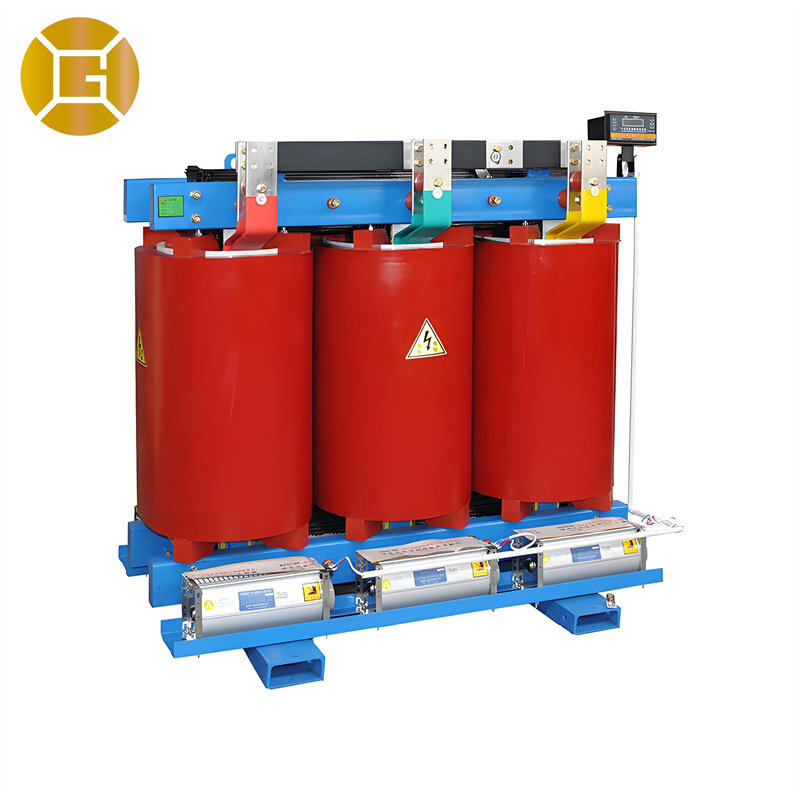

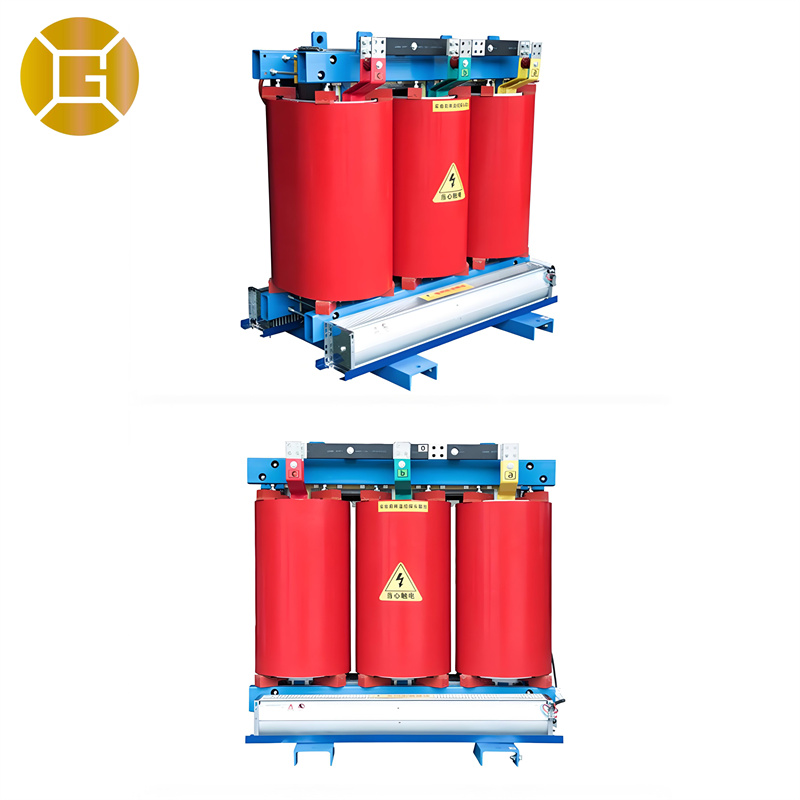

SCBH Series 10kV Three Phase Dry-type Amorphous Transformer

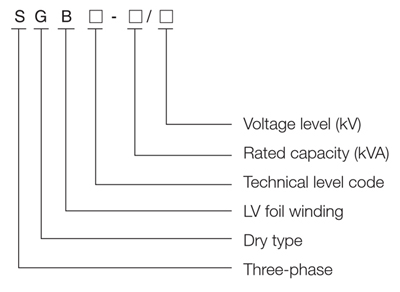

Model Definition
Features
● Voltage level: 10-35/0.4KV.
● Capacity: 30-5000KVA.
● Low Loss
The use of amorphous alloy materials significantly reduces no-load and load losses of the transformer, effectively improving energy utilization.
● High Efficiency
Optimized design and high-quality materials ensure the transformer operates efficiently under various load conditions, complying with national energy conservation and emission reduction policies.
● Oil-Free Design
Adopting a dry-type design without any insulating oil, it avoids potential environmental pollution and safety hazards.
● Low Noise
Advanced design technology and premium materials result in extremely low noise during transformer operation, making it suitable for environments with high requirements such as residential areas and hospitals.
● Natural Cooling & Forced Air Cooling
Depending on different capacities and application environments, the transformer can adopt natural cooling or forced air cooling to ensure good heat dissipation under overload conditions and extend service life.
● Temperature Monitoring System
The built-in temperature monitoring system real-time monitors the transformer's operating status. When the temperature exceeds the set value, the system automatically starts the fan for cooling, and can trigger an alarm or power-off protection when necessary to ensure safe operation of the equipment.
Range of application
For power distribution in high-rise buildings, densely populated residential areas, important government agencies, airports, subways, stations, industrial and mining enterprises, petrochemicals, power plants, ports and other places that require fire and explosion prevention.
Technical specifications
|
Rated capacity (kVA) |
Rated voltage |
Vector group |
No-load loss (W) |
Load loss (W) |
No-load current (%) |
Impedance voltage (%) |
||||||
|
HV (kV) |
Tapping range (%) |
LV (kV) |
15# |
17# |
19# |
15# |
17# |
19# |
||||
|
100 |
6 6.3 6 10 10.5 11 |
±5 Or ±2×2.5 |
0.4 |
Dyn11 Or Yyn0 |
130 |
110 |
90 |
1570 |
1415 |
1415 |
1.0 |
4 |
|
125 |
150 |
130 |
105 |
1850 |
1665 |
1665 |
1.0 |
4 |
||||
|
160 |
170 |
145 |
120 |
2130 |
1915 |
1915 |
1.0 |
4 |
||||
|
200 |
200 |
170 |
140 |
2530 |
2275 |
2275 |
0.8 |
4 |
||||
|
250 |
230 |
195 |
160 |
2760 |
2485 |
2485 |
0.7 |
4 |
||||
|
315 |
280 |
235 |
195 |
3470 |
3125 |
3125 |
0.7 |
4 |
||||
|
400 |
310 |
265 |
215 |
3990 |
3590 |
3590 |
0.7 |
4 |
||||
|
500 |
360 |
305 |
250 |
4880 |
4390 |
4390 |
0.6 |
4 |
||||
|
630 |
420 |
360 |
295 |
5880 |
5290 |
5290 |
0.6 |
4 |
||||
|
630 |
410 |
350 |
290 |
5960 |
5365 |
5365 |
0.5 |
6 |
||||
|
800 |
480 |
410 |
335 |
6960 |
6265 |
6265 |
0.5 |
6 |
||||
|
1000 |
550 |
470 |
385 |
8130 |
7315 |
7315 |
0.4 |
6 |
||||
|
1250 |
650 |
550 |
455 |
9690 |
8720 |
8720 |
0.4 |
6 |
||||
|
1600 |
760 |
645 |
530 |
11730 |
10555 |
10555 |
0.3 |
6 |
||||
|
2000 |
1000 |
850 |
700 |
14450 |
13005 |
13005 |
0.3 |
6 |
||||
|
2500 |
1200 |
1020 |
840 |
17170 |
15445 |
15445 |
0.25 |
6 |
||||
Note: The above data is subject to change due to technical improvement.
