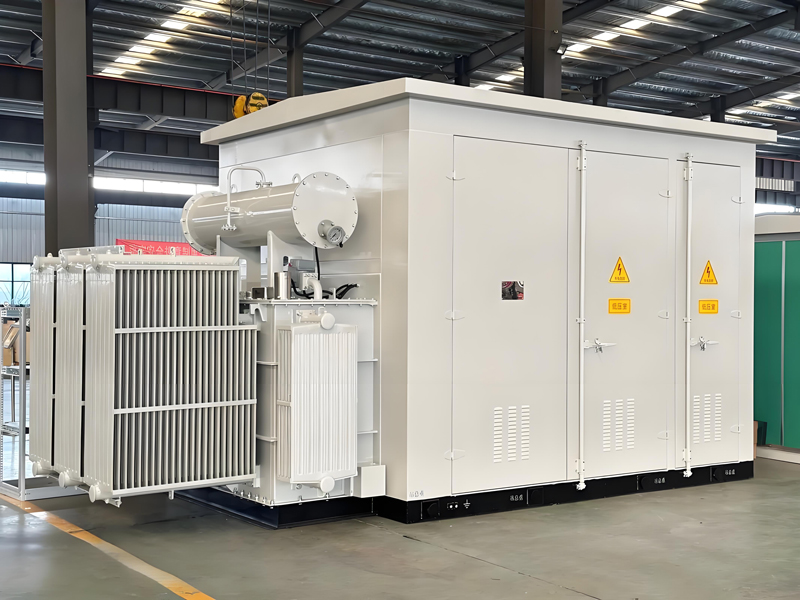

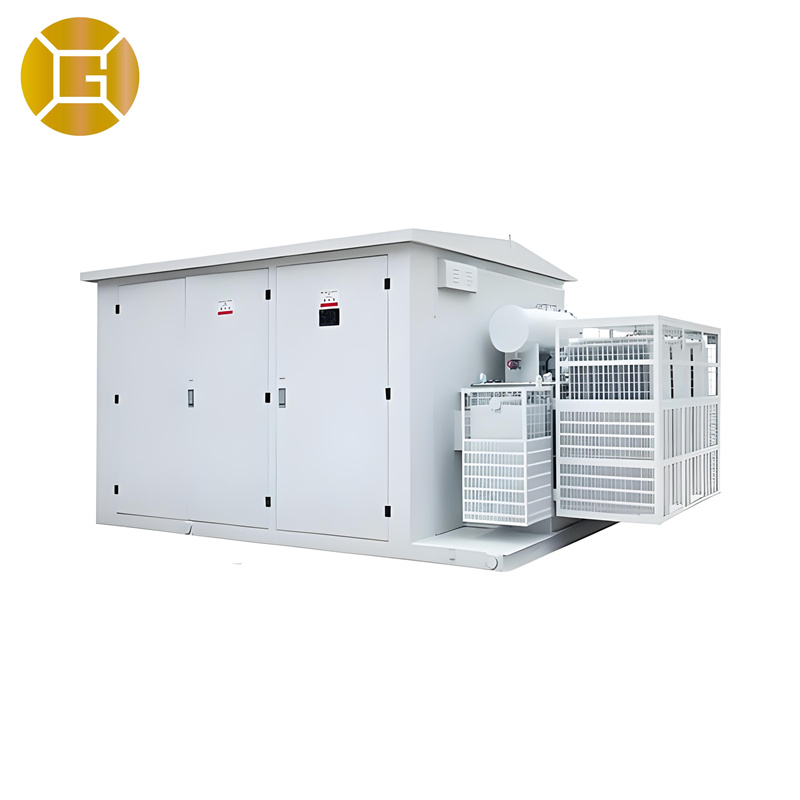

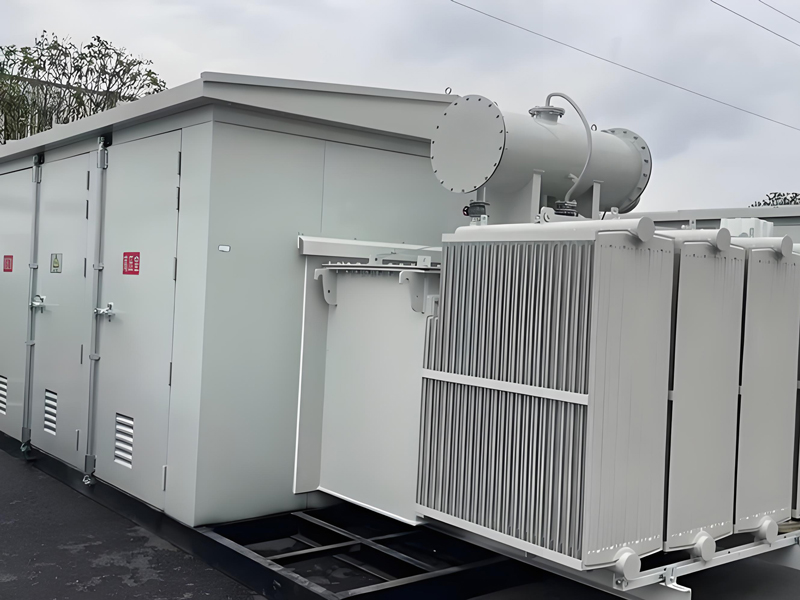

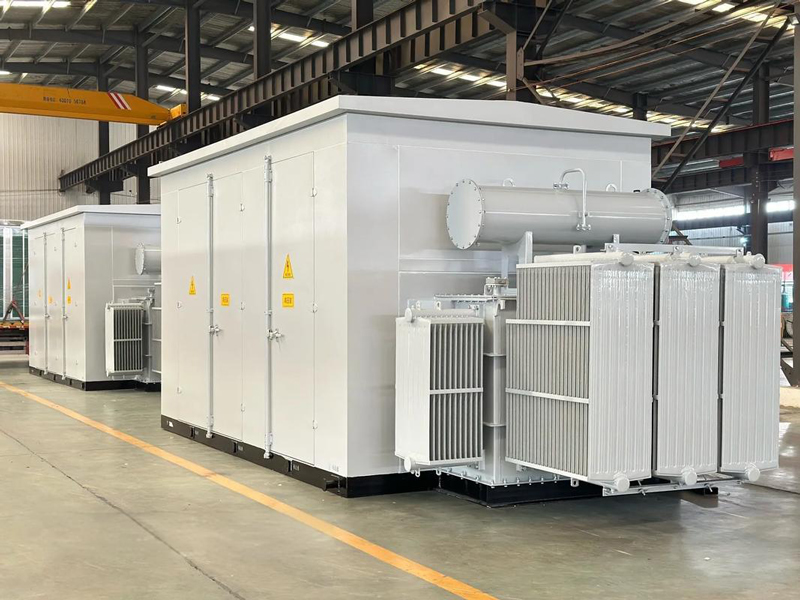

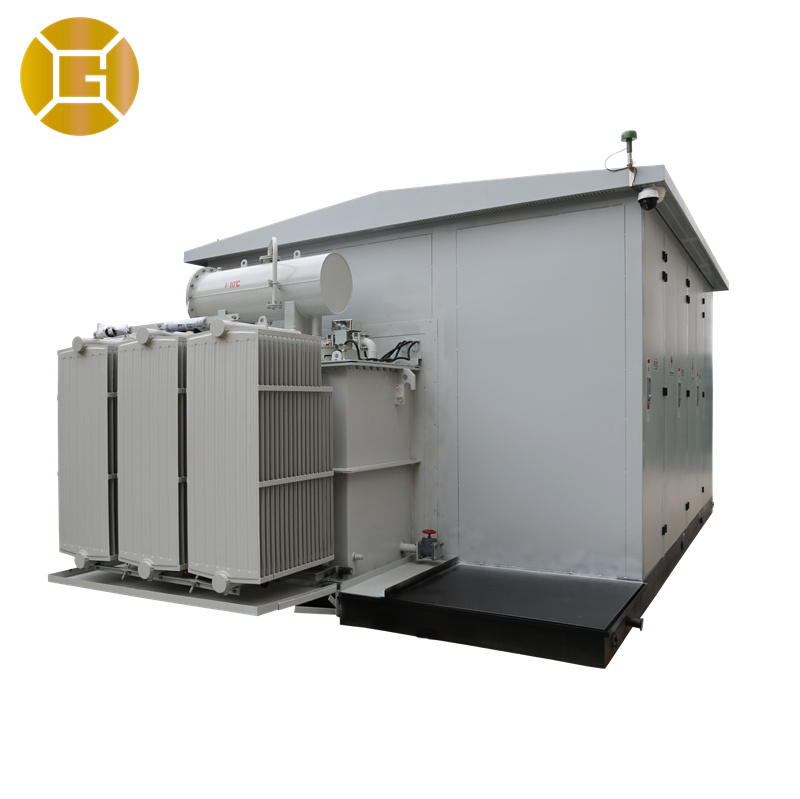

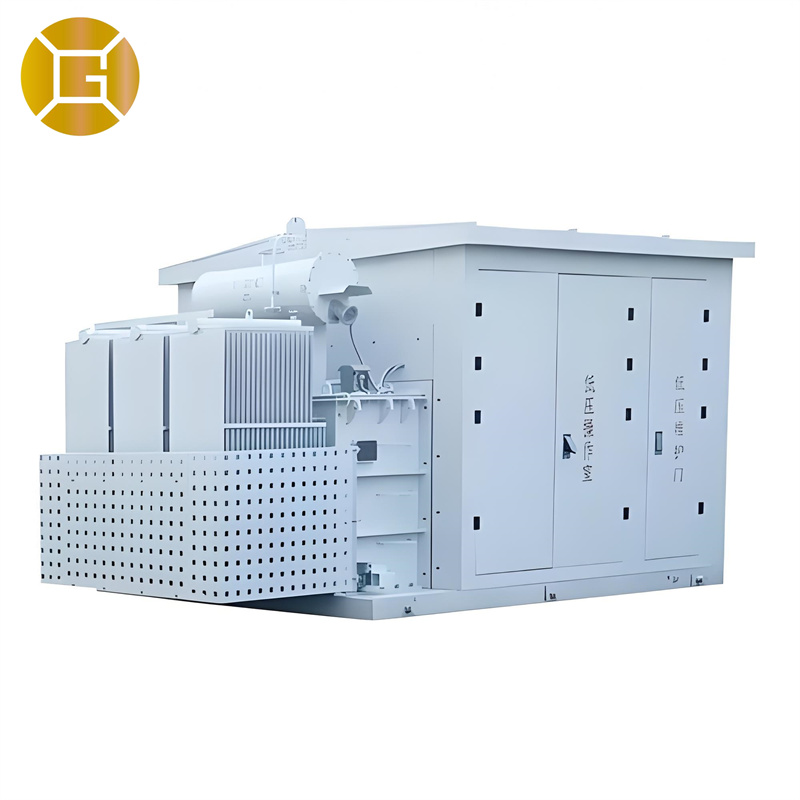

Prefabricated Substation (Chinese Box Type)
Features
1. Compact Structural Design
Adopting a modular integrated layout, it occupies 40% less floor area than traditional compact substations, ideal for space-constrained scenarios like urban centers and scenic areas.
2. High-Strength Protective Enclosure
Manufactured from premium steel with IP54 protection rating, it is impact-resistant and corrosion-proof, suitable for complex outdoor environments.
3. Easy Maintenance
With zoned layout of internal electrical components and reserved maintenance access, maintenance efficiency is improved by 50%.
4. Flexible Power Supply Solution
The high-voltage side supports multiple configurations such as ring main units/circuit breaker cabinets, adapting to different power demand scales.
5. Efficient Heat Dissipation System
Featuring intelligent temperature-controlled exhaust design, it operates stably in environments ranging from -25℃ to +40℃.
Operating conditions
● Ambient Temperature: -25°C to +40°C
● Altitude: ≤2000m
● Relative Humidity: Daily average ≤95%, monthly average ≤90%
● Seismic Resistance: Horizontal acceleration 0.4m/s², vertical acceleration 0.15m/s²
● Installation Environment: Free from severe shocks, heavy pollution, chemical corrosion, conductive dust, or explosive hazards.
Note: In case of non-compliance with normal operating conditions, please consult our company for solutions.
Technical specifications
|
Items |
Unit |
HV electrical equipments |
Transformer |
LV electrical equipments |
| Rated voltage |
kV |
6/10/35 |
6/0.4, 10/0.4 |
0.4 |
| Rated capacity |
kVA |
50~6300 |
||
| Rated current |
A |
200、400、630 |
100~3200 |
|
| Rated short-circuit breaking current |
A |
Load switch: 400–600A |
15~63kA |
|
|
kA |
Combined switch: Dependent on the fuse |
|||
| Rated short-time withstand current |
kA |
16,20(4s) |
15(1s) |
|
|
30(1s) |
||||
| Rated peak withstand current |
kA |
31.5,50 |
30 |
|
|
63 |
||||
| 1-min power frequency withstand voltage |
kV |
Phase-to-ground & phase-to-phase: 32/42/95 |
25/35 (Oil type) |
≤03,2 |
|
Isolating break: 36/48/118 |
20/28 (Dry type) |
>0.3,2.5 |
||
| ightning impulse withstand voltage (peak value) |
kV |
Phase-to-ground & phase-to-phase: 60/75/180 |
60/75 |
|
|
Isolating break: 70/85/185 |
||||
| Enclosure protection level |
IP54 |
|||
| Noise level |
dB |
35 |
Note: The above data is subject to change due to technical improvement.
