Low Voltage Switchgear

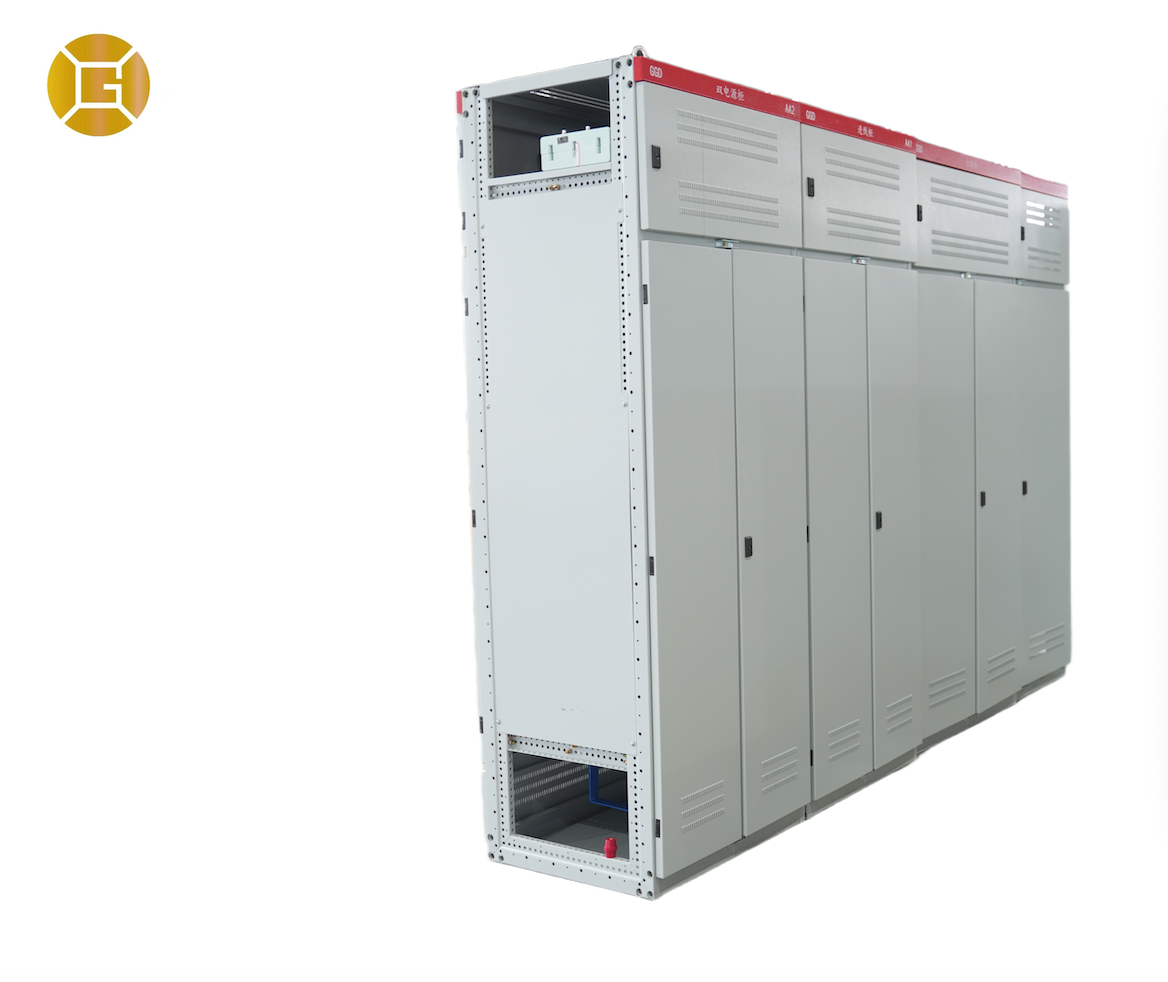

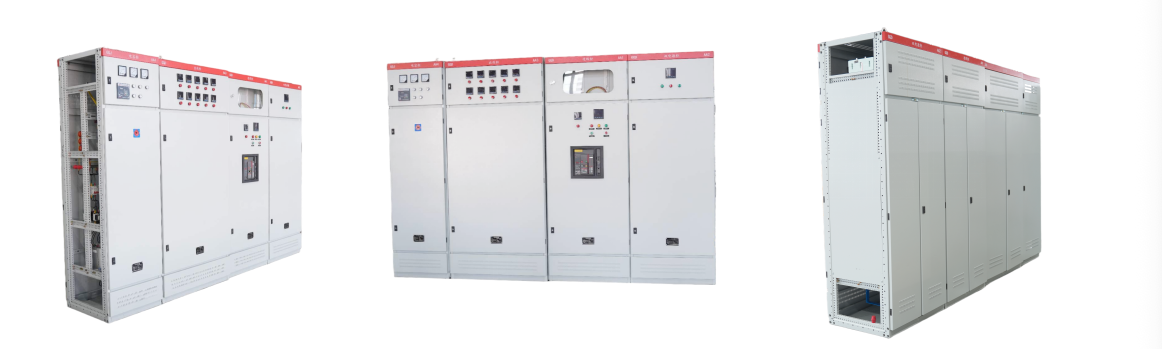

Custom OEM AC Low Voltage Distribution Panel GGD Type Electrical Switchgear Cabinet Manufacturer for Power Plant
1. Safe and Reliable: Complies with national and international standards, with a cabinet protection rating of IP30 or higher, featuring multiple protections including overload and short circuit to ensure stable operation.
2. Easy Maintenance: Modular design allows for flexible combination of functional units, flexible cabinet door opening, and clear component layout for easy inspection and maintenance.
3. Wide Compatibility: Complete specifications and customization available; supports integration with other power distribution equipment to meet diverse power distribution needs.
4. High Cost-Effectiveness: Optimized design reduces costs, resulting in low energy consumption, high efficiency, and long-term savings on electricity costs.
Applicable Locations
Widely used in various low-voltage power distribution scenarios, primarily including:
Industrial Sector: Factories, industrial parks, metallurgy, chemical industries, etc., ensuring stable power supply for production equipment.
Civil Buildings: Residential communities, office buildings, etc., providing safe electricity for residents and public areas.
Commercial Locations: Shopping malls, hotels, shopping centers, etc., meeting the power needs of commercial operations.
Public Facilities: Hospitals, schools, stations, municipal engineering projects, etc., ensuring normal power supply for public services.
Other Scenarios: New energy power plants, data centers, mines, etc., adapting to special power distribution needs.
Note: If any customized requirements, please consult with our company.
Note: If any customized requirements, please consult with our company.
technical Specifications
Model |
Rated voltage(V) |
Rated current(A) |
Rated short-circuit breaking current(kA) |
Rated short-time withstand current(1s)(kA) |
Rated peak withstand current(kA) |
|
GGD1 |
380 |
A |
1000 |
15 |
15 |
30 |
B |
600(630) |
|||||
C |
400 |
|||||
GGD2 |
380 |
A |
1500(1600) |
30 |
30 |
63 |
B |
1000 |
|||||
C |
600 |
|||||
GGD3 |
A |
3150 |
50 |
50 |
105 |
|
380 |
B |
2500 |
||||
C |
2000 |
|||||

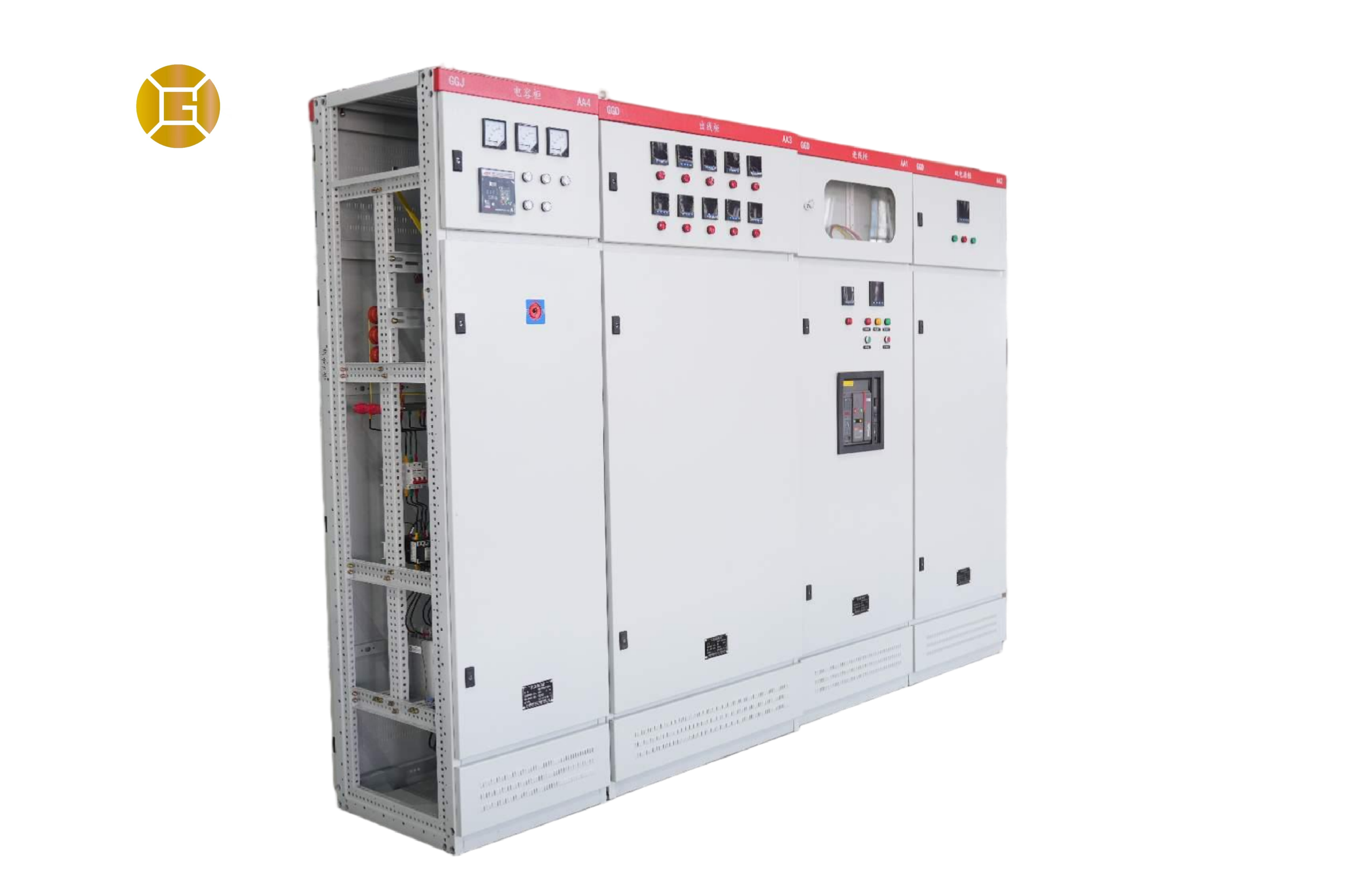

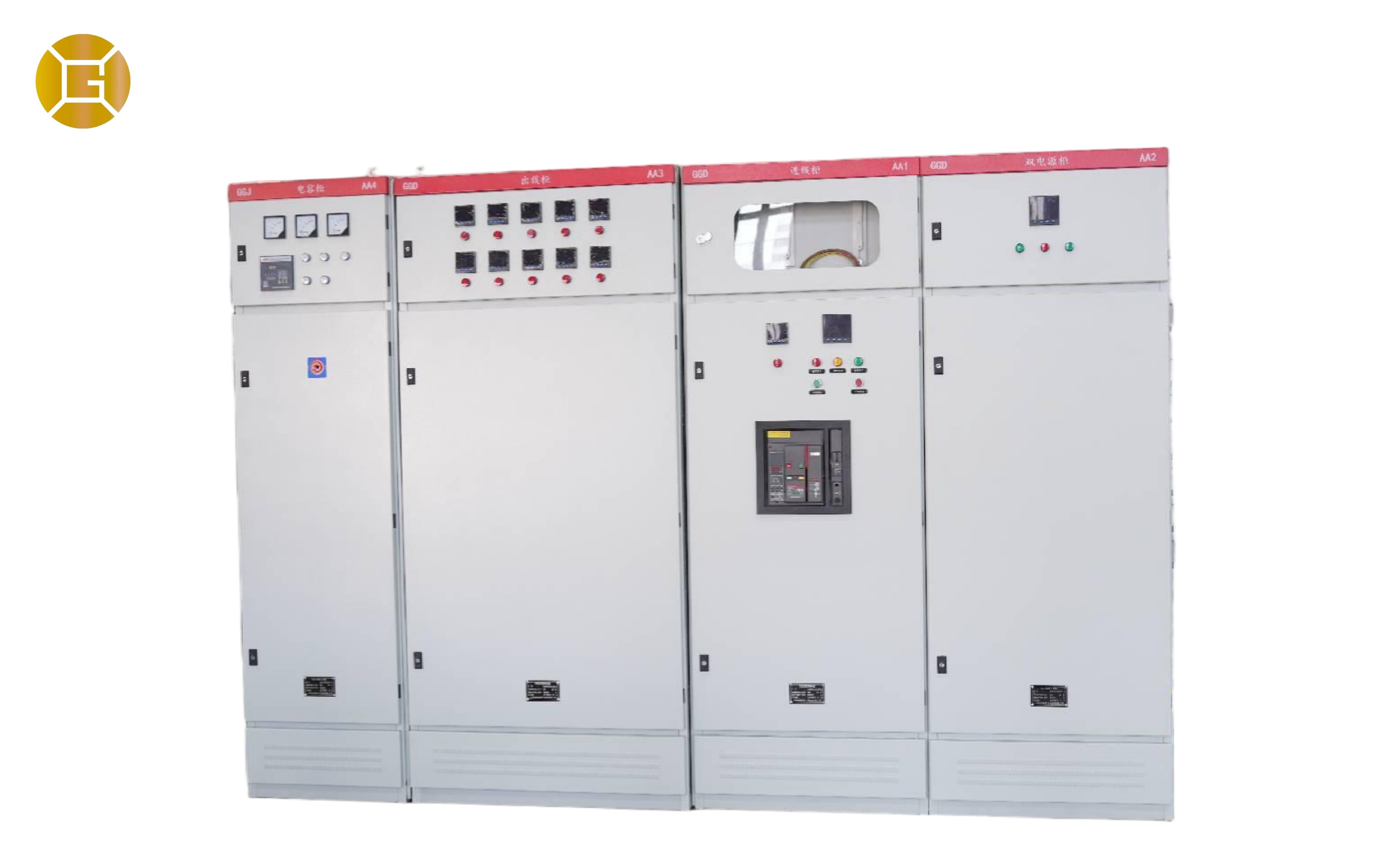

Factory Photos
